LSX Engine to S-Chassis Full Swap Kit

  • Sale
  • Regular price $0.00
Shipping calculated at checkout.

For the Following Applications:
This listing is for a full bolt-in swap kit for the Nissan S-Chassis ( S13 S14 240SX ) 1989-1998 models to use many of the LSX based engines with your choice of the 350Z, 370Z, or T56 transmissions.

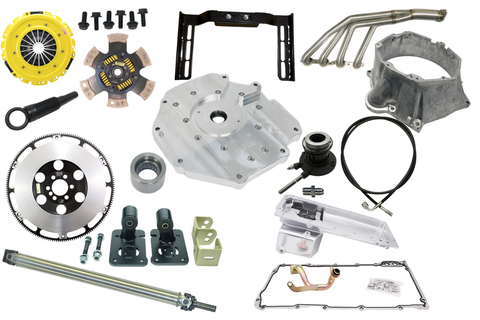

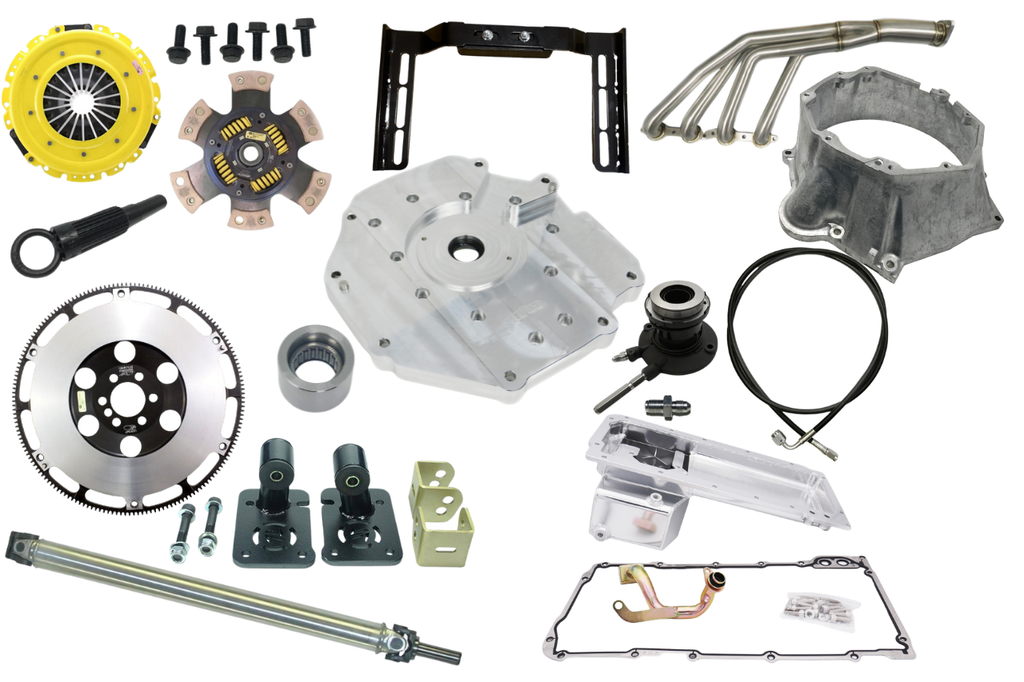

This kit will get the 350Z(CD009), 370Z(JK40x) or T56 6-Speed transmissions bolted up into your Nissan S-Chassis ( S13 S14 240SX ) with ease. This kit includes the following parts (which are subject to change at any moment without notice as better more readily available parts come onto the market).

-LSX (LS1/LS2/LS3/LQ9/LS7/LQ4/LS9/L33/LR4/LM7/L59/LM4/L76)

-350Z (CD001-CD009-Has Clutch Fork)
-350ZHR (JK40 Series-No Clutch Fork, Internal Slave Cylinder)
-370Z (JK40 Series-No Clutch Fork, Internal Slave Cylinder)

Options from the Drop Down:
-T56 Bellhousing
-Clutch System
-T56 Slave Cylinder + Clutch Line
-Engine Mounts
-Oil Pan Kit (LSX S13/14 Front Sump Swap Oil Pan, Oil Pickup Tube, Pan Gasket, All Hardware, Dip Stick with Option for Collins Oil Filter Relocation Kit- Necessary for fitment)
-Driveshaft Material
-Adapter Plate (Input Shaft Seal, Pilot Bearing Adapter and Hardware)

This Kit Does Not Include the Following:
-Clutch master cylinder for your Nissan S-chassis based vehicle
-Fasteners to bolt the T56 Bell housing to the LSX based block

*All of our S-Chassis driveshaft's are custom made to order! Once we receive your order, we will email over instructions regarding the measurements and photographs we require and will get your driveshaft out to you in 1-2 business days once we receive this information**

If using the LSX to 350Z adapter plate:
Simply cut the existing bell housing off of the front of the Stock 350Z/370Z/VQ 6-Speed transmission. Then remove the front input shaft bearing cover, replace the pump cover gasket with liquid gasket material. Bolt the adapter plate to the LSX bell housing, and then bolt the bell housing to the transmission! Install the LSX slave cylinder and install the transmission to the engine. It's that simple!

*Any questions or to check if in stock please give us a call at 803-792-7189*
